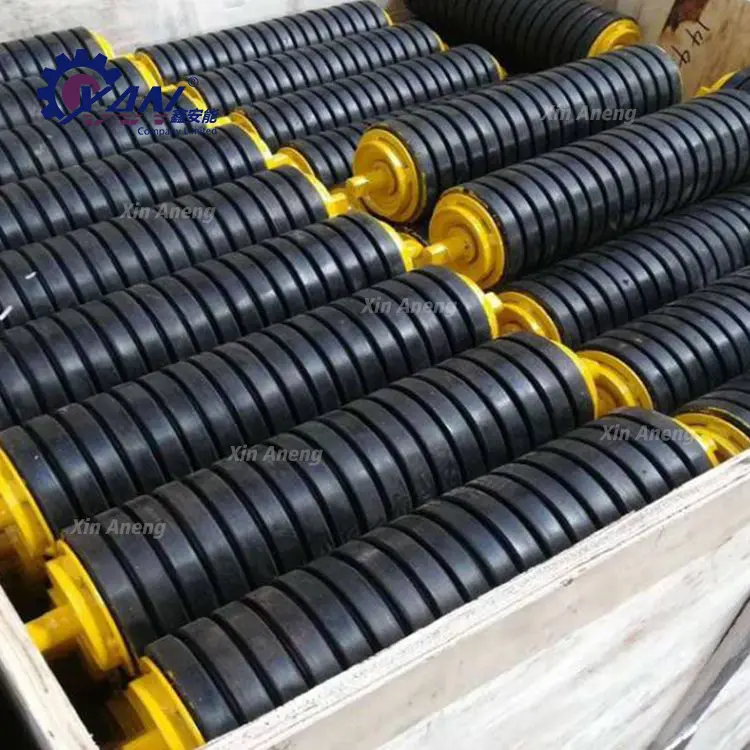

Rubber Spiral Return Roller

This rubber spiral return roller also called self-cleaning roller, it can clean the sticky material on the belt and protected build-up on the rollers., Rubber spiral return roller reduces downtime due to less carryback or less belt mistracking.

Send Inquiry

Product Description

This rubber spiral return roller also called self-cleaning roller, it can clean the sticky material on the belt and protected build-up on the rollers., Rubber spiral return roller reduces downtime due to less carryback or less belt mistracking.

Belt Width		Dimension									Bearing
Belt Width	Φ SD	Φ D	Φ d	Φ w	L1	L2	A	K	B	W	Bearing
400	Φ 90.3	Φ 76.3	Φ 20	7	460	505	480	8	12.5	14	6204 2RS
450					510	555	530
500					560	605	580
600					660	705	680
650					710	755	730
600	Φ 115.1	Φ 89.1		13	660	705	680
750					850	905	880
800					900	955	930
900					1000	1055	1030
1000	Φ 140.3	Φ 114.3	Φ 25		1100	1162	1140	11	16	18	6205 2RS
1050					1150	1212	1180
1200					1300	1362	1330
1400	Φ 165.8	Φ 139.8	Φ 30		1510	1585	1550		17.5	22	6206 2RS
1600			Φ 30		1710	1785	1750			22	6206 2RS
1800			Φ 35		2000	2075	2040			25	6207 2RS
2000			Φ 35		2200	2275	2240			25	6207 2RS
2200			Φ 40		2400	2475	2440			31	6308 2RS
2400			Φ 40		2600	2675	2640			31	6308 2RS
