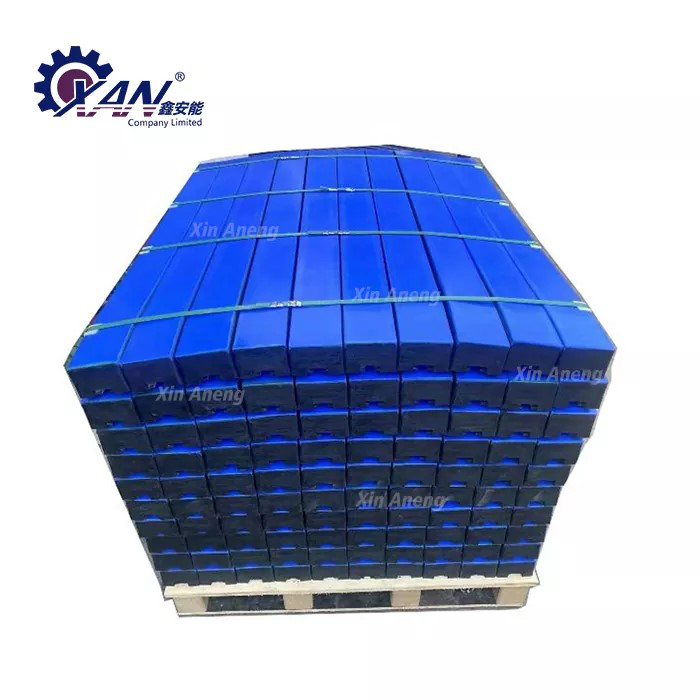

Impact Bed

As a leading manufacturer of the impact bed in China, Xin Aneng's more than 30 years of production and operation experience has won wide acclaim at home and abroad. We produce The Impact Bed to withstand extreme impact forces, extend the life of your company's conveying equipment, and enhance the stability and safety of your conveyor. We have worked extensively with companies from all walks of life, and have received all the praise and long-term partners. These validate the durability of our IMPACT Bed as well as its long service life. We are in business for a long time, so we always value the quality and warm service experience of each and every one of the impact beds.

Send Inquiry

Product Description

As a leading enterprise of the impact bed made in China, Xin Aneng has been widely praised for its high-quality The impact bed, which is far ahead of the industry in terms of quality and technology.

We know that your company's conveying equipment is purchased at a high price, which means that the maintenance and use of the conveyor need to be more professional and careful, and at the same time, every component of the conveyor is critical. Only when each component performs its own work to achieve its own work intensity, can it meet the long-term material handling, so as to ensure that your company's production plan can be carried out as scheduled, without wasting a minute or a second.

In addition to more than 30 years of continuous exploration and innovation in the industry to ensure the quality of the impact bed, Xin Aneng also has a professional team of engineers to escort your company's conveying equipment of any standard and model. As long as your company sends the drawings of the impact bed to our sales staff or customer service, we will customize the impact bed that meets your company's requirements as soon as possible, and will complete the impact bed on time, quality and quantity is our basic skill for more than 30 years. Please see our standard drawings and industry standards:

Technical Specification of Impact Bar Bed

Item
UHMWPE	Colour		Blue red black
	Tensile Strength	Mpa	23
	Elongation @ Break	%	300
	Hardness	Shore D	60-70
	Abrasion Loss		0.053
	Density	g/cm³	0.93-0.94
	Coefficient of Friction		0.07
Rubber	Hardness	Shore A	60-65
	Tensile Strength	Mpa	19
	Elongation @ Break	%	400
Metal Frame	Type	See Image Below
Adhesion Strength	UHMWPE to Rubber	N/mm	≥10
Adhesion Strength	Rubber to Metal Frame	N/mm	≥10
Length A(mm)	Width B(mm)	Height H(mm)	Thickness H2(mm)
1220	100	50-100	12.7/15
1400	100	50-100	12.7/15
1524	100	50-100	12.7/15
1600	100	50/75/100	12.7/15
1800	100	50/75/100	12.7/15

Xin Aneng also has a strong R&D strength and production strength, and the top choice is the top choice in the construction of professional teams and leadership teams, as well as the selection of machinery and equipment produced in the factory. First of all, let the professional team ensure the fit of the impact bed for your company's conveying equipment, and then use the top equipment to produce the impact bed to ensure the high quality and long life of the product, and finally we are also equipped with testing machinery, the completed production of the impact bed will not only be manually inspected whether each product is perfect, but also add machinery to test one by one, so as to ensure that every impact Beds are of the highest standard.
