Impact Troughing Idlers

Xin Aneng, a reputable manufacturer in China, is willing to offer you Impact Troughing Idlers. We promise to provide you with the best after-sale support and prompt delivery.

Send Inquiry

Product Description

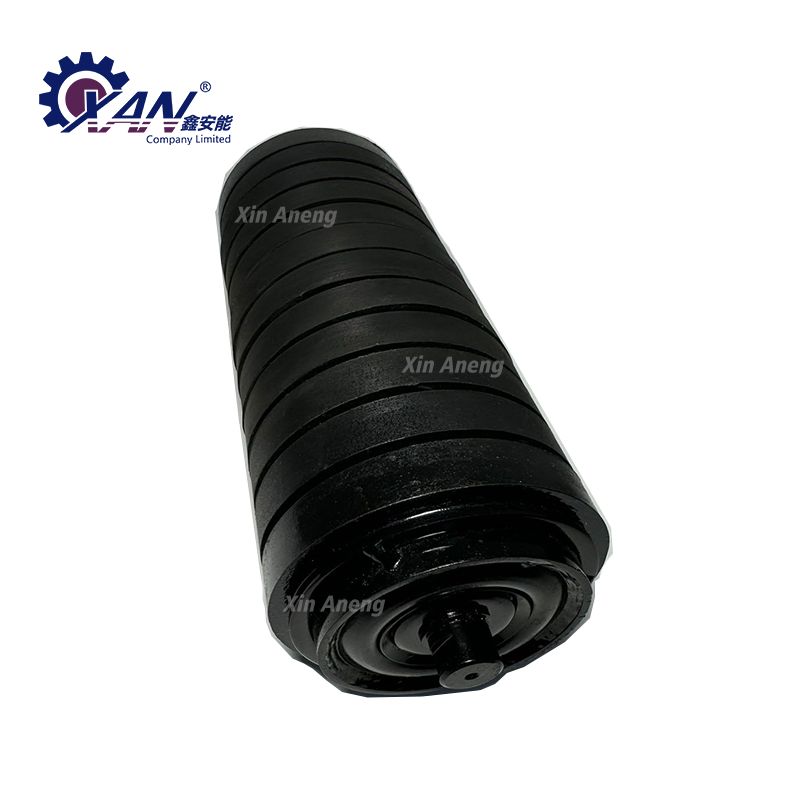

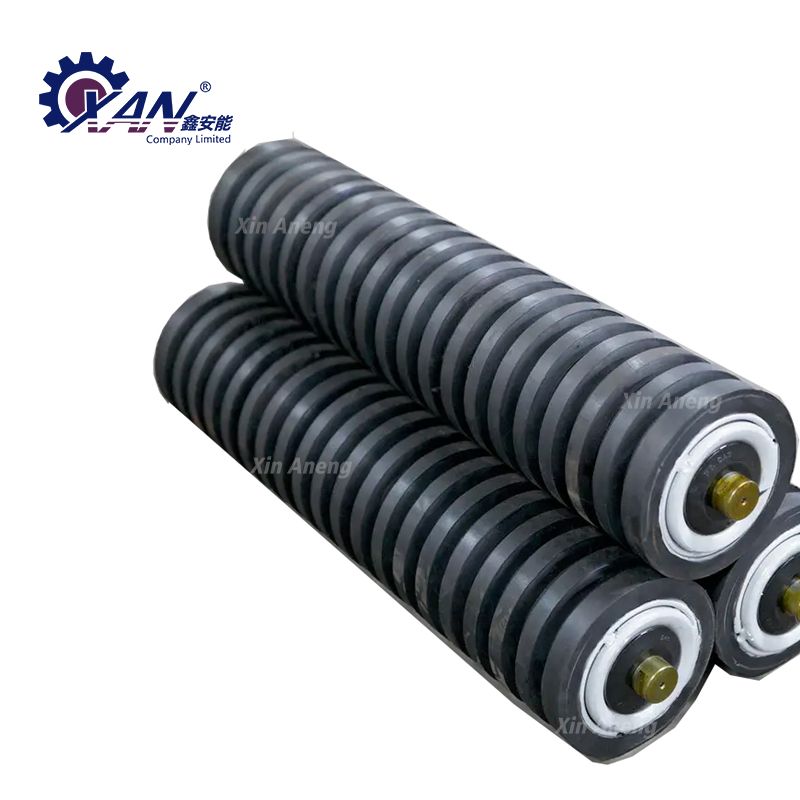

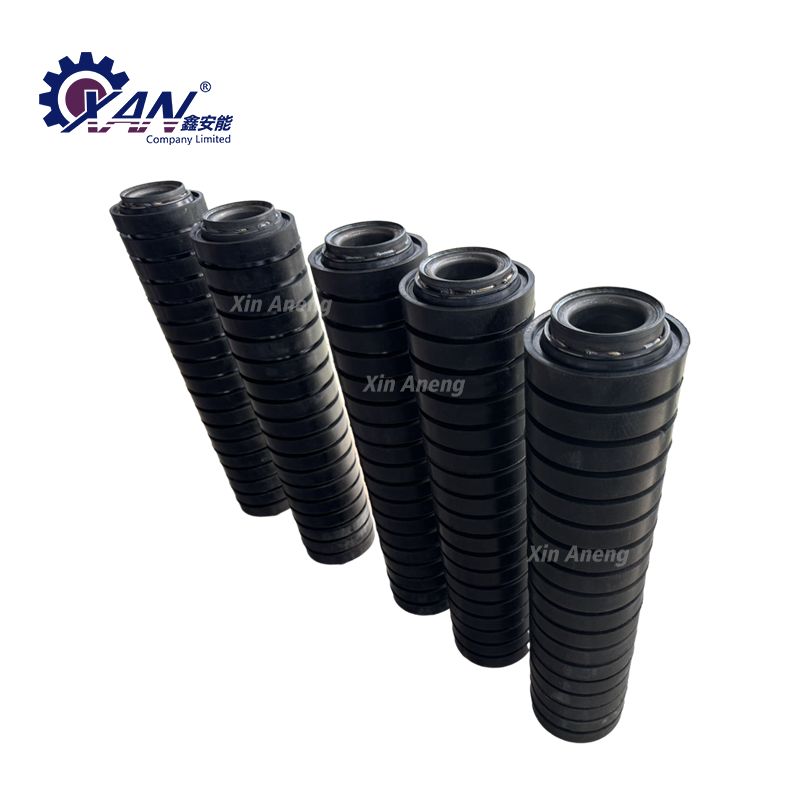

Impact Troughing Idlers are built with heavy duty frames to withstand shock at the loading zone. The rubber discs used on impact idlers are made of natural molded rubber ideal for absorbing impacts in loading zones.

Belt Width	Type		Dimension								Bearing
Belt Width	Type	Φ RD	Φ D	Φ d	L1	L2	A	K	B	W	Bearing
400	IR-400	Φ 90	Φ 60.3	Φ 20	145	175	153	8	11	14	6204 2RS
450	IR-450				165	195	173
500	IR-500				180	210	188
600	IR-600-1				210	240	218
650	IR-650				225	255	233
600	IR-600-2	Φ 115	Φ 76.3		210	240	218
750	IR-750				265	295	273
800	IR-800				275	305	283
900	IR-900				315	345	323
1000	IR-1000	Φ 140	Φ 89.1	Φ 25	350	390	360	11	15	18	6205 2RS
1050	IR-1050				370	410	380
1200	IR-1200				420	460	430
1400	IR-1400	Φ 166	Φ 114.3	Φ 30	500	540	510			22	6206 2RS
1600	IR-1600			Φ 30	580	620	590			22	6206 2RS
1800	IR-1800			Φ 35	650	690	660			25	6207 2RS
2000	IR-2000			Φ 35	730	770	740			25	6207 2RS
2200	IR-2200			Φ 40	800	840	810			31	6308 2RS
2400	IR-2400			Φ 40	880	920	890			31	6308 2RS
